KZ1 - Head Swivel








KZ1 - Head Swivel
$294.00

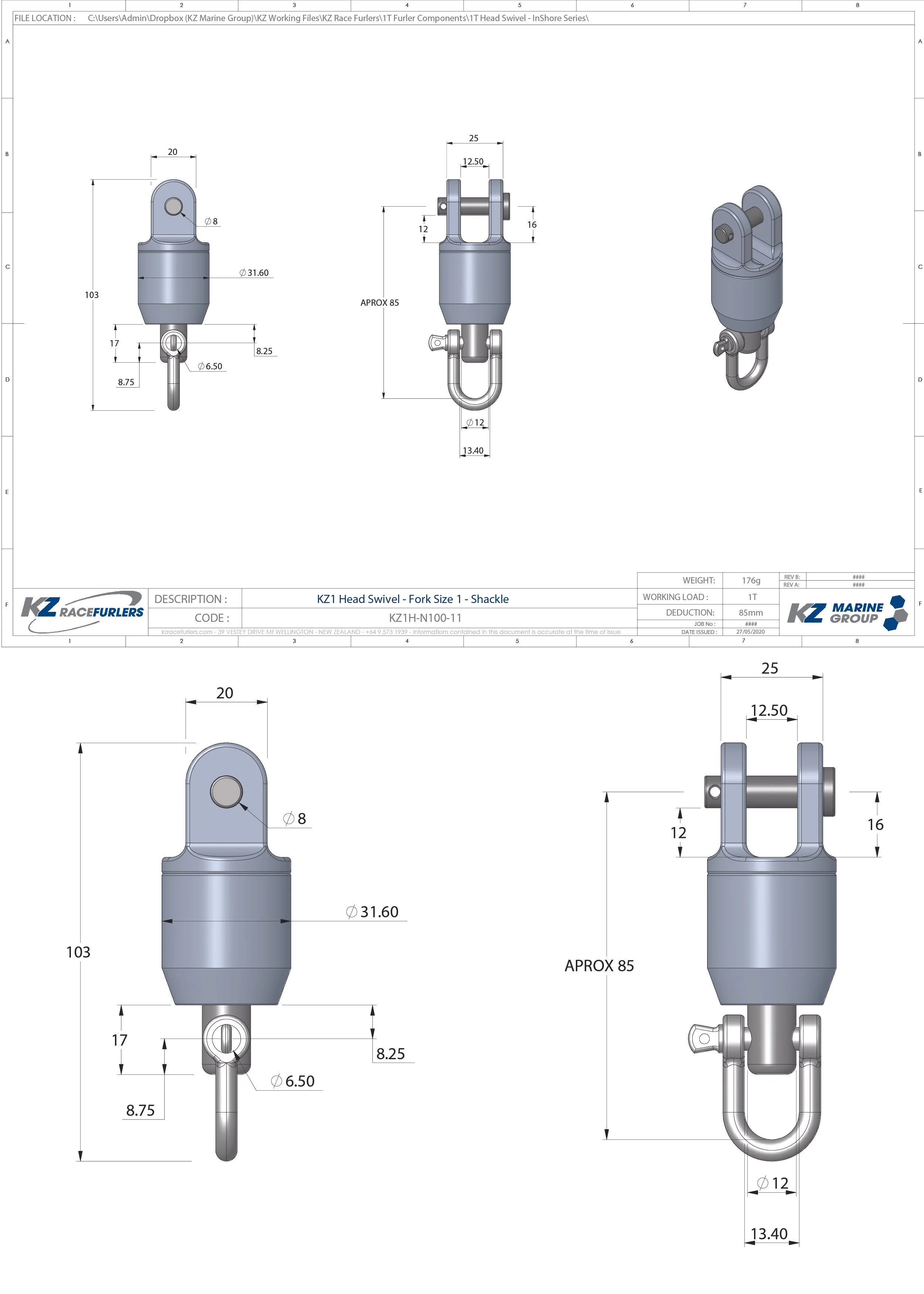

KZ Racefurlers Head Swivel units are design to work in conjunction with the KZ1 Furler. Built simply and modular so that the bearings can be serviced or replaced, theses are robust and concise designs that are made to perform. The upper end comes as a fork and pin. The lower unit comes with a Wichard shackles for hard or soft attachment. Perfect for a deployable staysail with up to a one ton working load. Repair kits are available through Kingspoke.com.

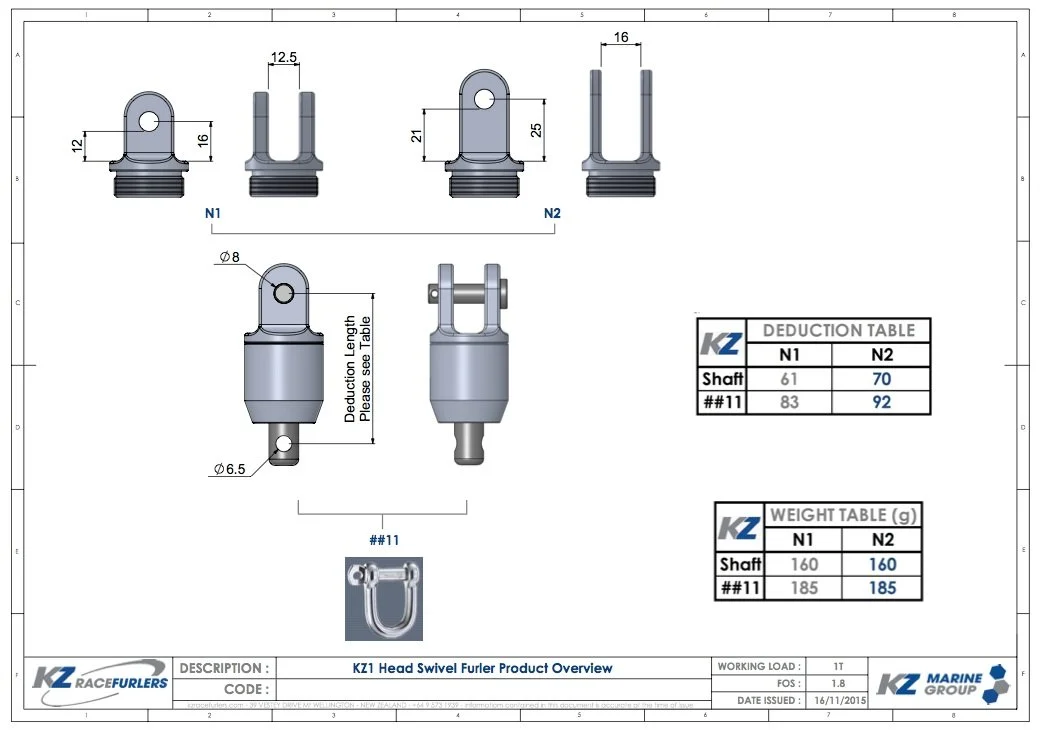

Lower Fork
Width: 12.5mm
Pin Diameter: 8mm

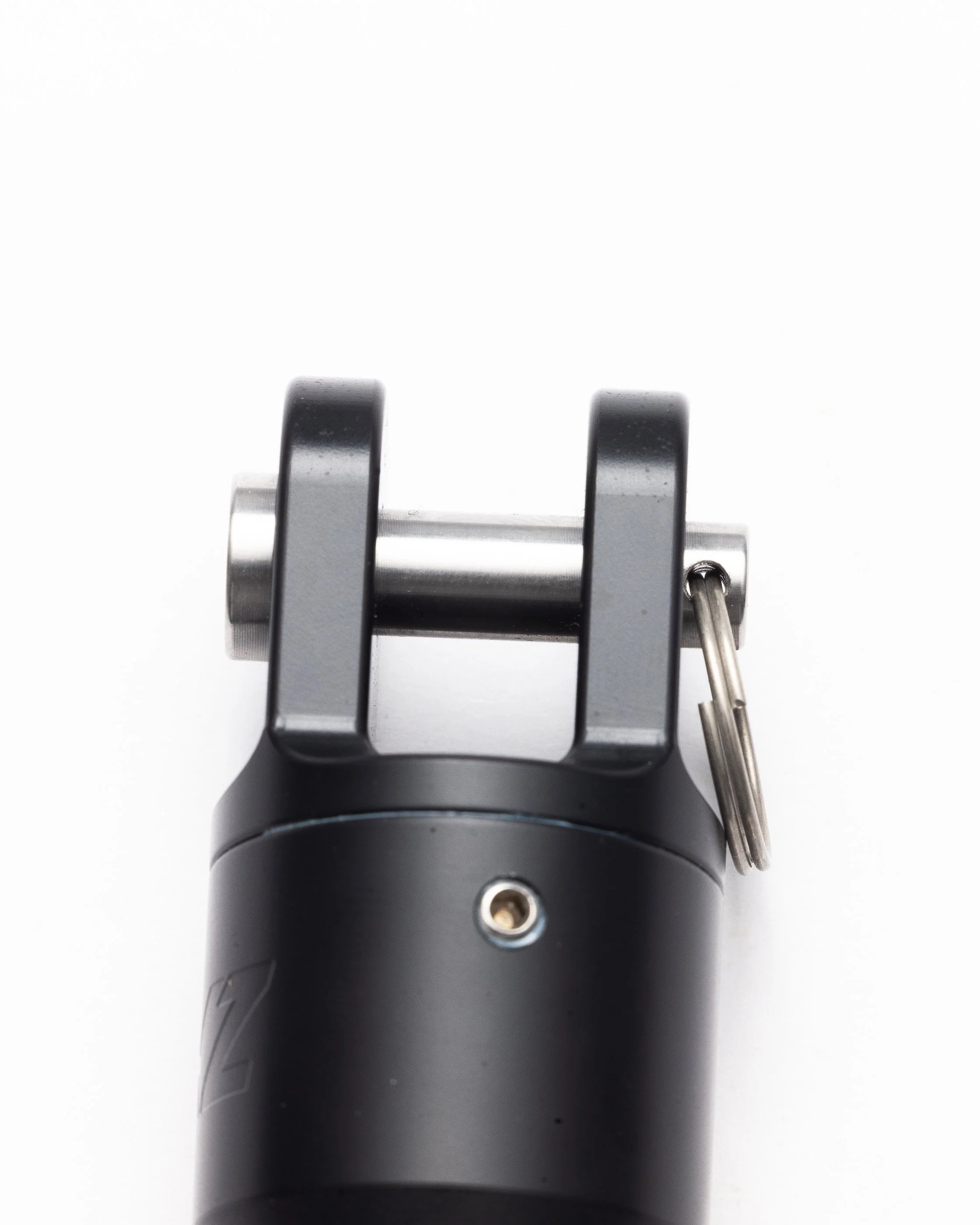

Upper Fork
Pin Hole: 6.5mm
Shackle:
Wichard HR D Shackle
SWL: 460kg
Quantity:
