NMP Block by Tye Tec
NMP Block by Tye Tec

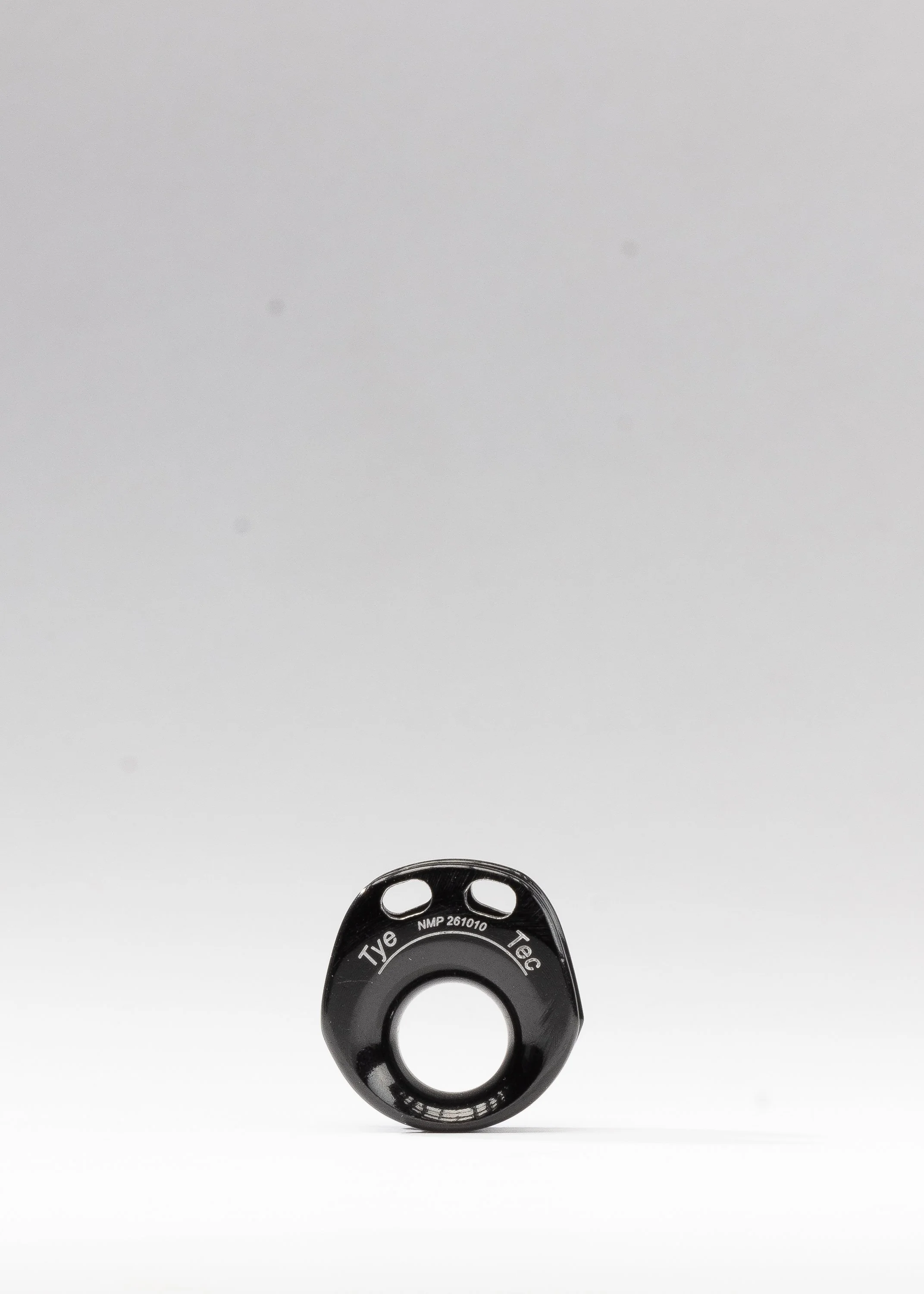

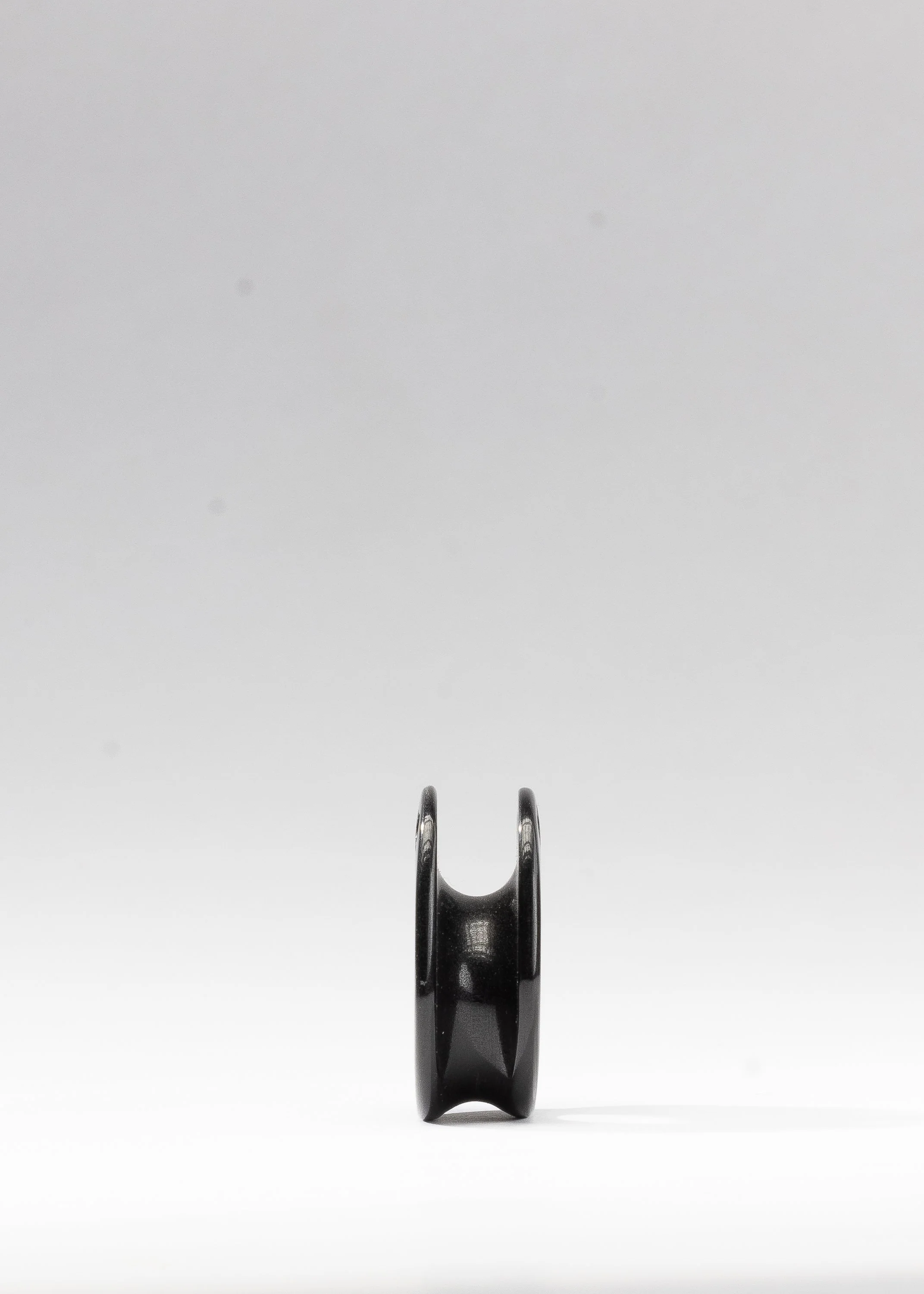

NMP Block is designed to be between a thimble and loop block. One primary opening and two milled slots to secure the block from spinning. Excellent for applications at the head of the main, jib sheets, reef attachments, cascades, backstays and vangs. NMP Blocks are made from aluminum and anodized black and treated for low friction and surface protection.
NMP261010
D1: 25mm
D2: 10mm
H: 26mm
B: 10mm
Weight: 5g
MWL: 1000daN
Max Rope: 5mm
NMP321212
D1: 29mm
D2: 12mm
H: 32mm
B: 10mm
Weight: 9g
MWL: 1200daN
Max Rope: 6mm
NMP381515
D1: 37mm
D2: 15mm
H: 38mm
B: 15mm
Weight: 15g
MWL: 1600daN
Max Rope: 8mm
NMP471818
D1: 46mm
D2: 18mm
H: 47mm
B: 18mm
Weight: 26g
MWL: 3500daN
Max Rope: 10mm
NMP562222
D1: 52mm
D2: 21mm
H: 56mm
B: 22mm
Weight: 47g
MWL: 6000daN
Max Rope: 12mm
NMP642525
D1: 60mm
D2: 24mm
H: 64mm
B: 25mm
Weight: 67g
MWL: 12000daN
Max Rope: 14mm
NMP803030
D1: 76mm
D2: 30mm
H: 78mm
B: 31mm
Weight: 136g
MWL: 20000daN
Max Rope: 18mm
